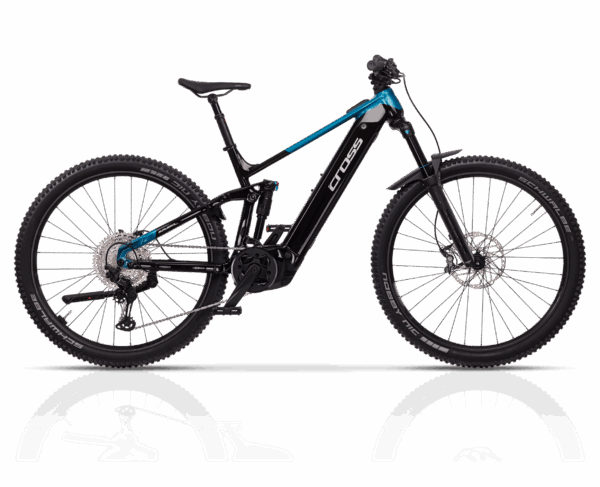

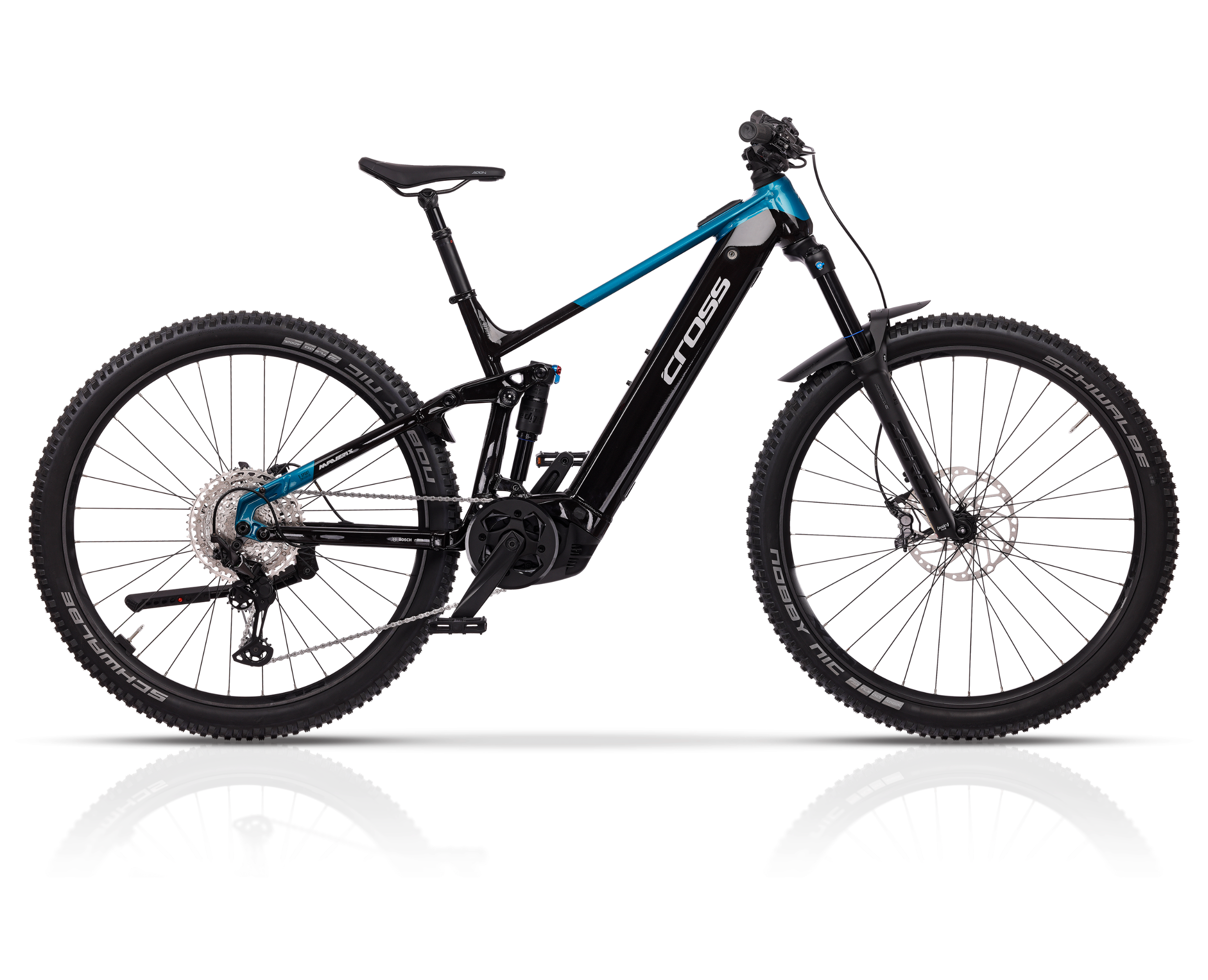

| CROSS MY2025 | MAVERIX s7 (MTB FULL SUSPENSION) |
| PARTS&COMPONENTS | SUPPLIER |
| ITEM/MODEL | |
| FRAME GROUP | |
| FRAME - BU1B015MTXXB | WMC TRADING IQ-8633-0 | 410/435/465/490 (PAINTED) |
| BU1F22235001 | WMC Battery Cover - Al-6061 and Plastic, Painted |
| BU1B15235013 | WMC Cable Plug - Plastic, 2 in 1, w/1 flat head screw |
| BU1B15235014 | WMC DT Cable Holder - Plastic, w/3M sticker - 8 pcs |
| BU1B15235015 | WMC Battery Holder - High Carbon Steel, Harderness: more than 60∘, Anodized Black - 2 pcs |
| BU1B15235016 | WMC Cable Holder - stainless, for Battery Holder - 2 pcs |
| BU1B14235002 | WMC Haxegon Flat head Screw - Stainless, M5x0.8Px10mmL, w/Nyloc, ED-Black - 4 pcs |
| BU1B15235019 | WMC Battery Holder - Al-6061-T6, 135.5x36, Anodized Black |
| BU1B15235020 | WMC Cable Plug - Plastic |
| BU1F22235003 | WMC Motor Cover - Plastic |
| BU1B14235005 | WMC Motor Cover Screw - Carbon Steel+CP, Haxegon Flat head, M5x0.8Px12mmL, w/Nyloc - 4 pcs |
| BU1B14235006 | WMC Charger Holder Screw - Stainless, Haxegon Flat head, M3x0.5Px7.8mmL, w/Nyloc |
| BU1B15235022 | WMC Cable Plug - Plastic, w/tapping screw |
| BU1B15235006 | WMC Cable Plug - Plastic, Ø6xH17 - 2 pcs |
| BU1B15235023 | WMC Kick Stand Replace Adapter - PA+GF, Matt-Black, Dimension: 40 |
| BU1B14235007 | WMC Haxegon Adapter Screw - Stainless, Socket head, M6x1.0Px14mmL, w/Nyloc - 2 pcs |
| BU1B14235004 | WMC Speed Sensor Holder Screw - Stainless, Haxegon Flat head, M3x0.5Px10.8mmL, w/Nyloc - 2 pcs |
| BU1B15235024 | WMC Cable Holder - Nylon |
| BU1B14235008 | WMC Cable Holder Screw - Haxegon Round head, M5x0.8Px8mmL, w/Nyloc |
| BU1B15235012 | WMC Controller Holder - Plastic, Black |
| BU1B15235017 | WMC Key Hole Plug - Rubber, Matt Black |
| BU1B15235018 | WMC Key Hole Sleeve - AL-6061-T6, Anodized Red |
| BU1B15235021 | WMC Charger Holder - TPU |
| BU1F22235004 | WMC Charger Cover - TPU |
| BU1B15235010 | WMC Speed Sensor Adaptor - Plastic, L21.21xW19xH5.13 |
| BU1B15235011 | WMC Speed Sensor Holder - Plastic |
| FORK | SUNTOUR SF25-ZERON36X-Boost EQ 2CR DS 15AH2-110 29" Т: 150 mm * TAPERED * BLACK MATT |
| REAR SHOCK | SUNTOUR RS25-EDGE-EVO TR 2CR LVN 205 x 60 mm / hardware: 25x8mm |
| PAINT | PAINTED IN ASIA - BLACK GLOSSY |
| DECALS | THUNDER OCC |
| KICKSTAND | URSUS REAR ADJ. KICKSTAND "MOOI PLUS" 40 mm BLACK W/SCREW - W/ANTI-NOISE SYSTEM * 90VN53R |
| REFLECTORS | WITHOUT |
| HEAD PARTS | ACROS 310.52.653 - AZF-653 |
| TOP CAP | ACROS top cap screw set item * 11.02.108 |
| SPACERS | ACROS Spacer, 5mm * 11.52.023 (2 pcs) |
| TRANSMISSION GROUP | |
| CHAINWHEEL | MIRANDA PE19IBT17000G04915PN Pe Epsilon 165Q:8 RF Isis B Pr mate C/rd 36D CF3D c/G4 DS Boost e prot TJ C/M15 |
| BB PARTS | MIRANDA |
| PEDAL | VPE-537 * BLACK |
| CHAIN | SHIMANO KCNM6100130Q |
| C/S PROTECTOR | VELO C/S PROTECTOR VLF-003-6 (Black 178.6*33mm ) |
| DERAILLEUR GROUP | |
| REAR DERAILLEUR | SHIMANO DEORE XT KRDM8100SGS |
| FRONT DERAILLEUR | WITHOUT |
| SHIFTING LEVERS | SHIMANO DEORE XT KSLM8100IRC |
| OUTER CASING & SP CABLE | PROMAX TEFLON INLAY |
| FREEWHEEL | SHIMANO DEORE KCSM610012051 10-51T |
| CABLE GUIDER | |
| WHEEL GROUP | |
| RIMS | X18 DISC * INOX EYELETS * PAINTED |
| HUB FRONT | SHIMANO AHBTC50015BB 110MM 15MM 32H CL * BLACK |
| HUB REAR | SHIMANO AFHTC500MSBB 148MM 12MM 32H CL * BLACK |
| REAR HUB AXLE | Glory Wheel Thru Axle New lever with tool 6mm-T30-T25 / with axle Hollow 178mm*L13mm*M12*P1.0 – Ano black, DrawingNo.CTS0829 - 411SA12B18ZS3001 |
| SPOKES & NIPPLES | BLACK INOX spokes 32/14G |
| TIRES | SCHWALBE SCHWALBE NOBBY NIC Perf, DD, RaceGuard, TLE 62-622 B/B-SK * 10654126.01 |
| TUBES | SCHWALBE SV19L 54/75-584/622 OEM 50mm * 10564363 |
| RIM TAPE | HERRMANS HPA+ 30x622/29" * 1622-0006 |
| OTHER | |
| HANDLE BAR | HUMPERT LOW RISER RAY 35, 780 MM, RISE: 15 MM, 9° - LEVEL 6, BLACK * 16850000 |
| STEM | HUMPERT RAY 35, EXT: 55, 0° - LEVEL 6, BLACK * 40862000 |
| GRIPS | HERRMANS Nucore Trail Peak left/right 130mm Black Ø22mm - 2016-0008 / 2016-0007 |
| CARTON | BG 98% FULL CARTON |
| MANUAL | MANUAL - CROSS MTB ZEDLER |
| SADDLE | FIZIK TERRA AIDON X3 160 mm, rail KIUM MOBIUS 7 x 7 mm, BLACK * F209URN067873 |
| SEAT POST | HUMPERT VIPER UP AND DOWN 30.9*397 MM, 125 MM, RM06 LEVER 1.500 MM LENGTH - LEVEL 6, BLACK * 59446200 |
| SEAT CLAMP | PROMAX MX27 35 * BLACK |
| BRAKE FRONT | SHIMANO KM8120KLFKRX095 |
| BRAKE REAR | SHIMANO KM8100KRR9RA170 |
| ROTOR | SHIMANO ASMRT64LEC 203 CL |
| ROTOR | SHIMANO ASMRT64MEC 180 CL |
| BRAKE LEVERS | INCLUDED IN THE BRAKES |
| BELL | YIWU ROCK SPORTING GOODS - "HIDDEN MINI BELL * 34210006001 |
| BOSCH SYSTEM | Bosch Performance Line CX (BES 3) BDU3840 · System Controller · Purion 400 · PowerTube 800 · 2A charger |
| BEB1110000E | NEW Drive Unit Performance Line CX (25km/h / 20 mph) |
| BEB1120003C | Nut M8x1 - 2 pcs |
| BEB1120012H | Screw M8x1x68,7 - short - new design - 2 pcs |
| BEB112000GK | Insert Sleeve - 2 pcs |
| BEB112000JH | Lockring for BDU37YY / BDU31YY / BDU38YY |
| B1270016119 | O-Ring |
| BEB11200015 | Rim magnet |
| BEB1120002S | Sleeve Rim magnet (Schrader valve, Presta valve) |
| BEB112000KD | NEW Logo Bezel Performance Line CX |
| BEB112000KJ | NEW Cable Cover for BDU38YY |
| BEB112000TA | NEW Screw M6x10 for Cable Cover BDU38YY |
| BEB1210004Z | NEW PowerTube 800 HOR (EU27, UK, CH, NO, AUS, NZ, ZA, IS) |
| BEB122000L4 | NEW Screw-on Plate PT800 horizontal |
| BF04N002664 | Screw for Screw-on Plate M4x8 - 4 pcs |
| BEB122000L7 | NEW Locking Assembly Standard |
| BEB122000LG | NEW Clamping Plate |
| BEB122000LJ | NEW Cradle Standard |
| BEB122000MF | NEW Cap for Cradle Rail Below Standard (optional) |
| BEB122000LG | NEW Clamping Plate |
| BEB122000LK | NEW Damper Foil Poron Plug for BBP38YY |
| BEB12100015 | Battery Adapter 2 (2 plug-in locations for battery cable) |
| BEB122000K4 | Pin Protection for BAD1 / BAD2 Adapter - 2 pcs |
| BEB1212000S | Cable Battery 350mm |
| BEB1212003W | Cable PowerTube Charging Socket 350mm |
| BEB12120019 | O-Ring 24x2 |
| BEB12110016 | 2A Charger 220-240V (EU27, UK, CH, NO, AUS, NZ, IS) |
| B1270020330 | Charger Power Cable Europe/ZA |
| BEB1310000H | NEW Display Purion 400 |
| BEB1320004J | NEW Clamp 35.0mm for Purion 400 (w/o Clamp Screw) |
| BEB1320004K | NEW Screw for Clamp Purion 400 - 2 pcs |
| BEB13100000 | System Controller (incl. Screw) |
| BEB132000AE | NEW Adapter for BRC3100 (for usage in BRC3200 Frame cut out) |
| BEB132000AF | NEW Screw for BRC3100/3200 Adapter M4x26 |
| BEB13100001 | Mini Remote 22,2mm |
| BEB12120006 | Cable HMI 1300mm |
| BEB1212000A | Cable HMI 300mm |
| LOCK | ABUS BOSCH BES3 PIVOT IT4 XPLUS * 99387 |
